Getting the right coating thickness is very important. This is true in many industries. These include electronics. They also include medical devices. Car making is another example. Companies often find it hard to put coatings on evenly. They also struggle to do it exactly right. This blog gives you helpful ideas. It also shares ways to do things. You can make your coating better. Use a Precision Film Coater system. We will help you learn about important things. We will cover technologies. We will also share techniques. These are needed to meet tough quality rules. They also help meet performance rules.
Why Perfect Coating Thickness Matters
Getting the right coating thickness is very important. It’s not just a nice thing to have. It’s a must for many items. This exactness changes how well your product works. It also affects how long it lasts. And it impacts how safe it is.
How It Affects Products
The coating’s thickness changes how a product performs. For example, in electronics, a good coating helps circuits work. If it’s too thin, the circuit might break. If it’s too thick, it could get too hot. A steady, controlled thickness gives the right features. This includes things like keeping electricity in. Or stopping rust. Your product will work better. It will also last longer. A good Precision Film Coater helps here. It makes the coating even.
How It Affects Money
Wrong coating thickness costs money. If it’s too thick, you waste costly stuff. If it’s too thin, your product might not be good enough. This means you have to fix things. You might even have to take products back. All these problems make making things more expensive. They also hurt your company’s name. Getting the right thickness saves money. It also cuts down on fixing things. This helps you save money. It also makes more profit. Buying good film coating machines helps a lot.
Rules and Laws
Many jobs have strict rules for coating thickness. These rules make sure products are safe. They also make sure products are good. For example, the boat industry has a rule. It’s called IMO PSPC 90:10. This rule says most coating measurements must be high enough. Only a small part can be lower. Following these rules is not a choice. It’s a must. Good lab coating equipment helps you meet these rules. It makes sure your products follow all laws.
Things That Change Coating Thickness
Many things change how thick your coating ends up. You need to know about these things. This helps you make the coating the same thickness every time.
Material Properties
The liquid coating itself is important. How thick it is matters. This is called viscosity. It changes how the liquid flows. A thick liquid spreads differently. A thin liquid spreads differently. Surface tension is also important. This is the force that holds the liquid’s surface. It changes how the coating sticks to the surface. Pick materials that work well. They should fit your coating method. This makes the coating even.
Substrate Characteristics
The surface you coat is also key. Its features change how the coating sticks. They also change how it spreads. Surface energy shows how well the liquid sticks. A rough surface can hold more coating. A smooth one holds less. Cleanliness is very important. Dirt or oil on the surface can cause problems. It can make the coating uneven. It can also stop it from sticking. You must clean your surface well. This gives the best results.
Environmental Conditions
The air around your coating process matters. It can change the result. Temperature changes how thick the material is. A warm room might make the coating thinner. Humidity can change drying times. It also changes how the coating settles. You need to control these things. This keeps the process steady. Steady conditions make the coating thickness more even.
Coater System Parameters
Your coater system settings are very important. This includes how fast you coat. It also includes the pressure you use. The space between the coating head and the surface matters. For example, with a Precision Film Coater, changing the slot die gap changes the wet film thickness. The pump speed also controls how much coating flows. You must adjust these settings carefully. This makes sure you get the exact thickness you need.
Types of Precision Film Coater Systems
You have many ways to put on coatings. Each system has good points. You pick based on what you need.
Slot Die Coaters
Slot die coaters are very exact. They put on a smooth, even layer. A pump sends coating liquid. It goes through a small slot. This makes a steady line. It goes onto your surface. You use them for thin, even layers. For best results, keep the web tight. Liquid thickness is key. Coating speed matters. Pick the right slot-die head. Choose the right pump. This makes the thickness steady. It makes the coating even.
Knife-over-Roll Coaters
Knife-over-roll coaters use thicker liquids. A blade sits over a roll. The roll holds the surface. The blade sets the coating thickness. You use this for thicker layers. It is a strong way to coat.
Gravure Coaters
Gravure coaters are great for patterns. A special roll has designs. It picks up the coating. It puts the design on your surface. You get very exact, thin layers.
Spray Coaters
Spray coaters can do many things. They turn the liquid into a mist. Then they spray it on the surface. You use them for odd shapes. Or for big areas. They cover well.
Dip Coaters
Dip coaters make even coatings. You dunk your surface. It goes into a liquid tank. Then you pull it out slowly. How fast you pull it out matters. Liquid thickness matters. Temperature matters. These change the final thickness. You get even cover. It is on all exposed parts.
System Selection Criteria
Picking the right system depends on things. Think about your material. Think about the thickness you want. Think about how even it needs to be. Look at how much you make. Look at your budget. Each Precision Film Coater is different. You pick the one that works best. It should meet your product’s needs.
Ways to Get Perfect Thickness
Good equipment is not enough. You need smart ways to coat. These ways make sure coatings are exact. They help you get the same good results.
Setting Up and Checking
Start by setting things up right. This is key to success. First, line up all parts. Check the gaps on your coater. For example, set the slot die gap. This changes the wet film thickness. Also, check material flow. Make sure it is steady.
Tip: Check settings often. This stops many coating problems. It makes sure your tools work well.
Set basic rules for each coating. This includes speed, pressure, and heat. Write these settings down. This helps you do well again. It also helps fix problems. Good setup gives you the right thickness.
Watching in Real-time
Watching as you coat is very important. It shows what is happening. Use sensors to check things. These sensors measure coating thickness. They find changes right away. For example, use an Industrial OCT system. This system gives instant feedback.
This quick data helps you make fast changes. You can fix issues early. This makes coatings very even. It stops wasting material. It also saves time. Watching in real-time helps you control your work.
New Coating Head Designs
New coating head designs make things better. Engineers make these heads for certain jobs. They use smart liquid movement. This makes material flow smooth and even. Some slot die designs fix edge problems. This means thickness is even across the whole width.
These designs have tiny adjustments. You can change the coating gap very well. This control helps you get exact thickness. It also lowers mistakes. Good coating heads make your film better. It makes your product better.
Making the Process Better
Always make your coating process better. Look at data from each run. Find patterns and ways to improve. For example, change coating speed. You could also change how thick the material is. Small changes can help a lot.
Use tools to check the process. These tools find trends. They show when things go wrong. This lets you fix them early. Making your process better makes coatings even. It also lowers differences. This means more good products and less cost.
Handling Materials
Handling materials well is key. It is as important as the coater. How you get material ready matters. It changes the final thickness. You must control the material’s heat. Heat changes how thick it is. This changes how it flows.
Also, clean your coating liquids. This removes small bits. Bits can cause holes or lines. Remove air bubbles from the material. Bubbles can make flaws. Steady material flow to the Precision Film Coater is vital. It makes sure coating is even. Bad material handling can ruin a good system.

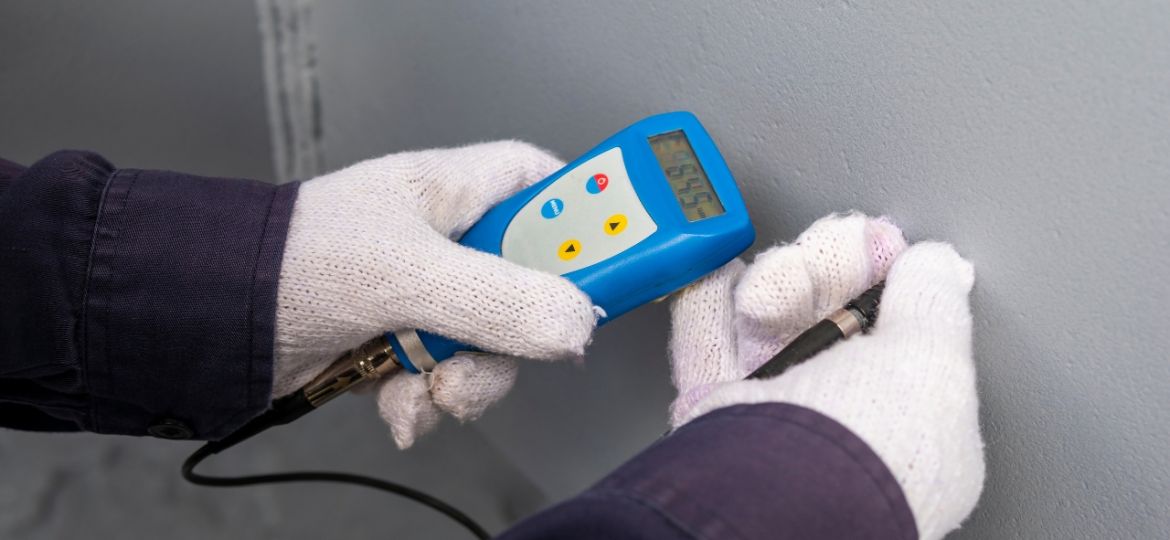

Measuring Coating Thickness
You need to know your coating’s exact thickness. This helps you check quality. It also helps you meet standards. Different tools measure thickness. You pick the best tool for your job.
Non-Destructive Methods
These methods check thickness. They do not harm your product. You can use them on finished items.
- Magnetic Induction: Use this for non-magnetic coatings. It works on steel. A probe makes a magnetic field. It measures field changes. This tells you coating thickness.
- Eddy Current: This works for non-conductive coatings. It works on non-ferrous metals. The probe makes an eddy current. It measures the current’s strength. This shows the coating thickness.
- Ultrasonic: This sends sound waves. They go through the coating. It measures how long sound takes. It bounces back. This method works on many materials. It is good for thicker coatings.
- Micrometer: You use a micrometer. It measures total thickness. Then you measure the bare substrate. The difference is your coating thickness. This is simple. But it needs careful handling.
💡 Tip: Choose a non-destructive method. Do this when you test every piece. This saves your product.
Destructive Methods
Sometimes, you must cut your product. These methods destroy the sample. You use them for detailed analysis. Or when other methods do not work.
- Cross-Sectioning: You cut a small piece. It is from the coated material. You look at the edge. Use a microscope. You can see coating layers. You measure them directly. This gives a clear view. It shows coating uniformity.
- Gravimetric Analysis: You weigh the substrate. Do this before and after coating. You know the coating material’s density. You can then figure out average thickness. This is useful for lab coating equipment tests.
Real-time Measurement Systems
Modern film application technology lets you measure thickness. Do this as you coat. This is called in-process monitoring. It helps you keep controlled thickness.
- Industrial OCT Systems: These systems use light waves. They scan the coating. Do this as it applies. They give instant, precise thickness data. You can see changes right away. This helps you adjust your Precision Film Coater settings quickly.
- NIR Spectroscopy: This uses near-infrared light. It measures how much light the coating absorbs. This tells you the coating’s thickness. It also tells its composition. It is great for monitoring liquid coatings. It helps ensure consistent coating uniformity.
These real-time tools help you. Make corrections fast. They reduce waste. They also improve product quality.
Fixing Coating Problems
Even with the best Precision Film Coater, things can go wrong. You might see problems with your coating. Knowing how to fix these saves time. It also saves money. You keep your product good.
Unevenness and Lines
You want your coating to be perfectly flat. Sometimes, it is not. Unevenness means the coating is not the same thickness. This happens across the surface. Streaks are lines. Or they are bands. The coating is different there.
- Why it happens:
- Bad Material Flow: Your coating liquid might not flow well. This happens if your pump has issues. It also happens if tubes are blocked.
- Dirty Coating Head: Dry coating bits can stick. Dust can also stick to the slot die. This causes drag. It makes uneven lines.
- Uneven Pull: The material you coat might pull unevenly. The coating head might not sit right. This changes thickness.
- Heat Changes: Temperature changes affect your coating liquid’s thickness. This makes it spread unevenly.
- How to fix it:
- Check your pump. Check your liquid system. Make sure it flows steadily.
- Clean your coating head often. Remove any buildup.
- Adjust the pull on the material. Make it even.
- Control the room’s temperature. Keep it steady.
Tiny Holes and Flaws
Pinholes are tiny holes. They are in your coating. Other flaws include bubbles. Or small bumps. These hurt how your product looks. They also hurt how it works.
- Why it happens:
- Air Bubbles: Air gets trapped in your coating liquid. This makes pinholes. It happens when mixing. Or when pumping.
- Dust and Dirt: Small bits on your surface cause flaws. Or bits in your coating liquid. The coating flows around them.
- Surface Flaws: Tiny bumps or holes on your surface. They show through the coating.
- Bad Drying: If the coating dries too fast. Or too slow. It can trap liquids. This makes bubbles.
- How to fix it:
- Remove air from your coating liquid. Do this before coating.
- Keep your coating area clean. Use air filters. Clean your surface well.
- Look at your surface before coating. Fix any flaws.
- Make your drying process better. Make sure air flows well. Control the heat.
Edge Problems
The edges of your coated material often have issues. You might see thicker areas. Or thinner areas. This happens at the sides. This makes the coating uneven.
- Why it happens:
- Surface Pull: The coating liquid pulls away. Or it gathers at the edges. This is because of surface pull.
- Die Design: Some slot die designs. They do not handle edge flow well. This makes it uneven.
- Coating Gap: The space between the coating head and the surface. If it is not perfect at the edges. You get problems.
- How to fix it:
- Change your coating liquid’s surface pull. You can add things.
- Think about a different slot die design. Some designs control edges better.
- Adjust the coating gap. Do this across the whole width. Make sure it is even.
Sticking Problems
Sticking means your coating stays on the surface. If it does not, the coating peels. Or it flakes off. This makes your product useless.
- Why it happens:
- Bad Surface Prep: Dirt, oil, or water on the surface. It stops the coating from sticking.
- Wrong Materials: Your coating liquid might not stick well. It might not bond with your surface.
- Bad Drying/Hardening: The coating needs enough time. It also needs heat to stick. If not, it stays weak.
- Room Factors: High humidity. Or very hot/cold air. These affect sticking during coating.
- How to fix it:
- Clean your surface very well. Use the right cleaning ways.
- Pick coating liquids. They should stick well to your surface. Test them first.
- Follow drying and hardening steps carefully. Make sure it sticks fully.
- Control your coating room. Keep it steady.
Finding and Fixing
When you find a problem, you need a plan. You find out what is wrong. Then you fix it. This step-by-step way helps you keep thickness steady. It also keeps quality high.
- Look and Write: Look closely at the flaw. Where is it? How often? Take pictures. Write down everything.
- Check Your Steps: Look at your last settings. Did anything change? Look at liquid types. Look at room conditions. Look at Precision Film Coater settings.
- Change One Thing: Change only one thing at a time. For example, if you think there are air bubbles. Try removing air from your liquid first. Do not change pump speed and heat at the same time.
- Use Tools: Use your lab coating equipment. Use real-time measuring systems. They show what your changes do. This makes sure coating is even.
- Ask Experts: Sometimes, you need help. Talk to your liquid supplier. Talk to your film application technology provider. They can give good ideas.
- Do It and Watch: Once you find a fix, use it. Then, watch your process closely. Make sure the problem does not come back.
By doing these steps, you fix coating problems well. You keep your work running smoothly. You also make sure coating thickness is perfect.
Future Coating Trends
Coating technology keeps changing. You will see new things. These make coating better. They help you get perfect coating uniformity.
AI and Machine Learning
AI and ML change how you coat. These smart systems learn from data. They can guess problems. They do this before problems happen. Your Precision Film Coater can adjust itself. It will make settings best. This means less waste. It also means steady coating thickness. AI helps you make every step just right. You get better results. You use less effort.
💡 Tip: AI can look at sensor data. It helps find the best settings. This is for your film application technology.
Advanced Sensor Technologies
New sensors give you more power. These sensors are very exact. They can measure coating thickness. They do this with great accuracy. You get instant feedback. This helps you make quick changes. For example, new optical sensors see small differences. They make sure you keep controlled thickness. This is true across your product. These sensors work with your lab coating equipment. They show you everything. You can fix things faster. This keeps quality high.
Sustainable Practices
Being green is very important. Future coating trends are eco-friendly. You will see new materials. They are better for Earth. Precision coating helps cut waste. When you coat perfectly, you use less material. This saves resources. Your Precision Film Coater can use less energy. This helps the environment. You get high quality. You also protect the Earth.
Getting perfect coating thickness is very important. It changes how good your product is. It also affects how well it works. And it impacts how much it costs. You now know what changes thickness. You can pick the right coater systems. You also know exact ways to coat. And how to measure well. Companies should use a full plan. Use new technology. Always make things better. Do this in your work. Coating technology keeps getting better. The Precision Film Coater will keep changing how things are made.
