Quick answer: Coastal and industrial atmospheres accelerate corrosion through chloride deposition, humidity, wet-dry cycling and industrial contaminants. A zinc-rich coating can provide sacrificial and barrier protection, but only when the substrate is decontaminated, the coating system is selected for the actual exposure and the specified DFT is achieved. Atmospheric C5 classification does not automatically approve permanent immersion or splash-zone service.
Pakistan includes coastal, humid, industrial and polluted environments with very different corrosion loads. Karachi marine exposure cannot be reduced to a generic “anti-rust paint” statement.
This guide explains how to assess the environment, select a system and plan inspection without turning a durability category into an unconditional warranty.

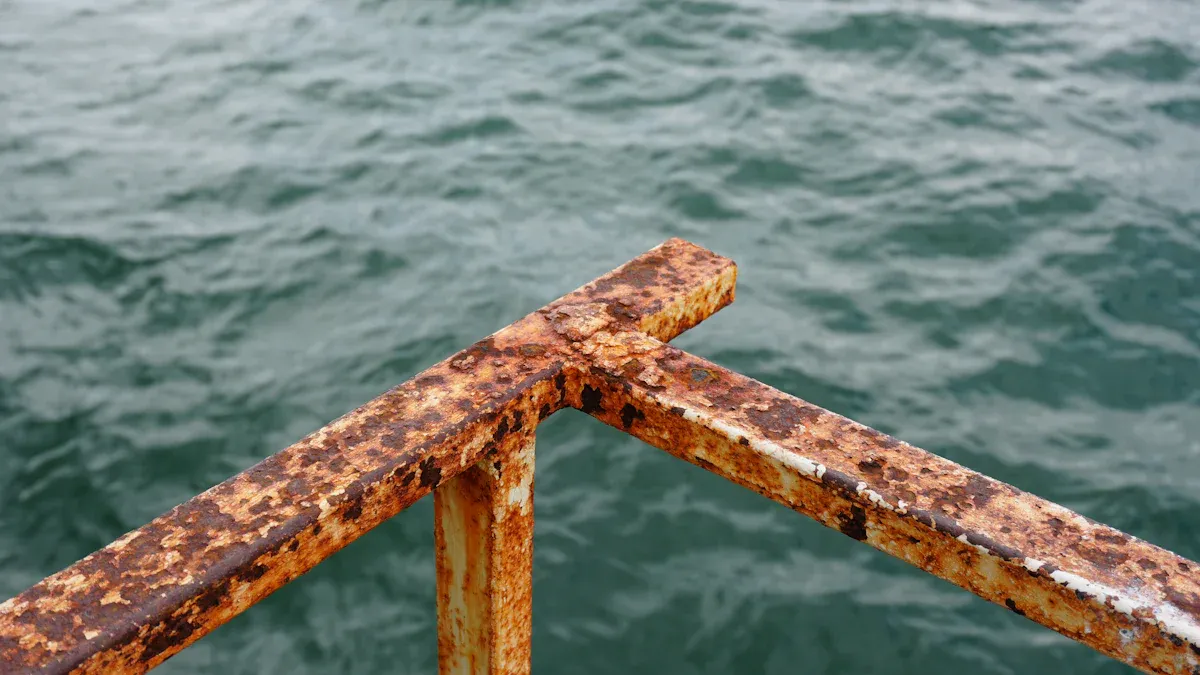

Why Coastal Steel Corrodes Faster
Airborne chlorides settle on steel and retain moisture. Repeated wet-dry cycles concentrate salts and sustain electrochemical corrosion. Crevices, horizontal ledges, sheltered zones and condensation points can be more severe than exposed vertical surfaces.
Salt can remain after visible rust removal. If coated over, it may promote blistering and underfilm corrosion.
Industrial Contaminants
Sulphur compounds, dust, process chemicals, cooling-tower drift and deposition from traffic or fuel combustion can alter surface chemistry and moisture retention.
The coating specification must consider the actual site, not only distance from the sea.
ISO 12944 Atmospheric Categories
ISO 12944 uses atmospheric corrosivity categories such as C1 through C5 and CX to support system selection. The category is based on environmental severity and expected corrosion, not simply a city name.
Durability ranges are maintenance-planning periods and not warranties. The ROVAL manufacturer publishes an 80 μm C5-High conformity document. That evidence applies to the stated product and system and should not be generalised to every zinc paint.
Atmospheric Exposure Versus Immersion
Atmospheric C5 service is different from permanent fresh-water, sea-water, soil or splash-zone exposure. Immersion categories require separate system review and often different coating design.
Do not use an atmospheric certificate as automatic approval for tanks, buried steel, tidal zones or continuously wet service.
Site Survey
- Distance and orientation relative to the coast.
- Visible salt deposition and wash frequency.
- Condensation, shade and ventilation.
- Industrial fumes, chemicals and dust.
- Temperature cycles and UV exposure.
- Mechanical abrasion and access for maintenance.
- Existing coating and corrosion pattern.
Surface Decontamination
Remove soluble salts before blasting or final coating. Where salt contamination is likely, use a defined washing and verification procedure.
Abrasive media, compressed air and water must not reintroduce oil or salts. Protect the cleaned steel from flash rust and contamination.
System Selection
A high-zinc cold galvanizing compound may be suitable as a standalone atmospheric repair or protection layer where the manufacturer evidence and project specification support it.
Where colour, UV stability, chemical resistance or prolonged barrier life is required, an approved compatible topcoat or complete coating system may be necessary. Compatibility and recoat window must be confirmed.
Edges, Welds and Water Traps
Round sharp edges where possible, seal unsuitable crevices, improve drainage and stripe coat vulnerable geometry. Coating cannot fully compensate for a design that traps water and salts.
Inspect bolt groups, undersides, welds, supports and horizontal ledges more frequently.
Maintenance Planning
Create baseline photographs and DFT records. Schedule washing where salt accumulation is high. Inspect for red rust, coating breakdown, impact damage, chalking, cracking and loss of adhesion.
Repair local defects before corrosion spreads beneath the surrounding coating. Maintenance intervals should be adjusted from actual condition data.
Claims to Avoid
Do not state that a coating is “marine grade” without a defined system and evidence. Do not promise a fixed service life. Do not confuse atmospheric C5 with immersion.
Do not ignore preparation because a product contains a high zinc percentage.
Frequently Asked Questions
Is C5 the same as permanent sea-water immersion?
No. C5 is an atmospheric corrosivity category. Immersion requires separate classification and system selection.
Why wash steel before blasting?
Blasting can remove rust but may not remove soluble salts. Salts left on the surface can cause underfilm corrosion.
Can one zinc-rich coat protect every coastal structure?
No. Exposure, DFT, design, maintenance and compatibility requirements differ.
How often should coastal steel be inspected?
Set an initial planned interval, then adjust from actual condition, salt deposition and criticality.
Does a C5-High certificate guarantee 15 to 25 years?
No. The range is a durability planning category, not a warranty.
Product and Technical Support in Pakistan
For current product information, visit the ROVAL ZRC product page. For project coordination, contact Marjan Polymer Industries.
Technical References
Technical notice: This guide does not replace the current manufacturer TDS, SDS, contractual coating specification or site-specific engineering assessment. Confirm the latest documentation before use.
