Semi-Auto Sample Loom

Semi-Auto Sample Loom

The Semi-Auto Sample Loom provides high-precision weaving for textile samples. Ideal for research, development, and small-scale production. Features adjustable settings and robust construction.

Semi-Auto Sample Loom

Advanced Textile Sample Weaving Solution

High-Precision Semi-Automatic Sample Loom

Product Introduction

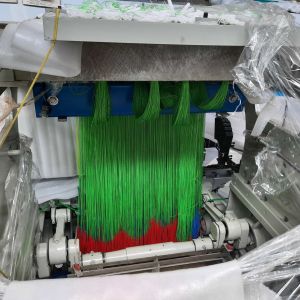

The Semi-Auto Sample Loom is an advanced textile weaving machine designed for efficient and precise sample production. This high-performance loom is ideal for research, development, and small-scale production in the textile industry. Engineered with state-of-the-art technology, the Semi-Auto Sample Loom ensures high-quality weaving, making it indispensable for fabric development, testing, and quality control.

Key Features

Superior Weaving Precision
  • High Accuracy: Ensures precise weaving of textile samples, providing consistent and high-quality results.
  • Versatile Weaving: Capable of producing various fabric types, including plain, twill, and complex patterns.
Robust Construction
  • Durable Materials: Constructed from high-quality materials to withstand rigorous use and ensure long-lasting performance.
  • Adjustable Settings: Features adjustable weaving parameters for precise control over the weaving process.
User-Friendly Design
  • Easy Operation: Intuitive controls and interface for easy setup and operation.
  • Semi-Automatic Functionality: Combines manual and automatic features for enhanced efficiency and control.
Versatile Applications
  • Wide Range of Fabrics: Suitable for weaving different fabric types for various applications, including fashion, home textiles, and technical fabrics.

Specifications Table

Technical Parameter Performance Index
Width Reed width 20”
Color Selection Manual
No. of Heald Frame 16 standard, 20 optional
Take-up Manual or automatic
Beating-up Manual
Heald Lifting PLC control, Pneumatic opening
Air Source Control Air source pressure 0.45~0.8Mpa, largest air consumption 200L/min
Power Source Rated power source 220V, freq. 50HZ
Outer Line Size (mm) 1300×980×1510
Weight 180KG
Power 1KW

Types of Sample Looms

Standard Sample Loom
  • Description: Ideal for general-purpose weaving of textile samples.
  • Benefits: Provides reliable and consistent weaving for a wide range of fabrics.
High-Precision Sample Loom
  • Description: Designed for precise weaving of complex patterns and high-quality fabrics.
  • Benefits: Ensures accurate and detailed fabric samples.
Industrial Sample Loom
  • Description: Suitable for small-scale production and industrial applications.
  • Benefits: Delivers robust performance for continuous use.

Applications

Research and Development
  • Usage: Used in R&D labs for developing new fabric designs and testing materials.
  • Benefits: Provides precise control and monitoring for experimental accuracy.
Textile Quality Control
  • Usage: Ideal for quality control laboratories to test and verify fabric quality.
  • Benefits: Ensures consistent and accurate testing results.
Small-Scale Production
  • Usage: Suitable for small-scale production runs in textile manufacturing.
  • Benefits: Enhances production efficiency and fabric quality.

Accessories and Tools Included

Essential Accessories
  • Heald Frames: Includes standard and optional heald frames for various weaving needs.
  • Pneumatic System: Integrated pneumatic system for efficient heald lifting.
Additional Tools
  • Cleaning Kit: Ensures easy maintenance and cleaning of the loom.
  • User Manual: Provides detailed instructions for operation and maintenance.

Installation and Training

Comprehensive Installation Services
  • Process: Complete installation and setup by factory-trained engineers and technicians.
  • Seamless Integration: Ensures smooth integration into your laboratory or production facility, minimizing downtime and maximizing efficiency.
Thorough Training Programs
  • Training: Extensive training for your staff, covering operational and maintenance aspects.
  • Benefits: Maximizes productivity and efficiency by ensuring your team is well-versed in using the loom.

Warranty

Limited Warranty
  • Duration: 12 months limited warranty on parts and after-sales services.
  • Exclusions: Excludes consumables, user-damaged parts, and damages caused by electrical failures, fire, or natural disasters.
