The Split Hopkinson Pressure Bar (SHPB) by Marjan Polymer Industries offers advanced dynamic mechanical testing for materials. Featuring AL-7075 bars, high-speed optical measurement, and a comprehensive data acquisition system, it ensures precise stress-strain analysis. Ideal for research and industrial applications

Split Hopkinson Pressure Bar (SHPB)

Split Hopkinson transmission Bar (SHTB)



Product Introduction

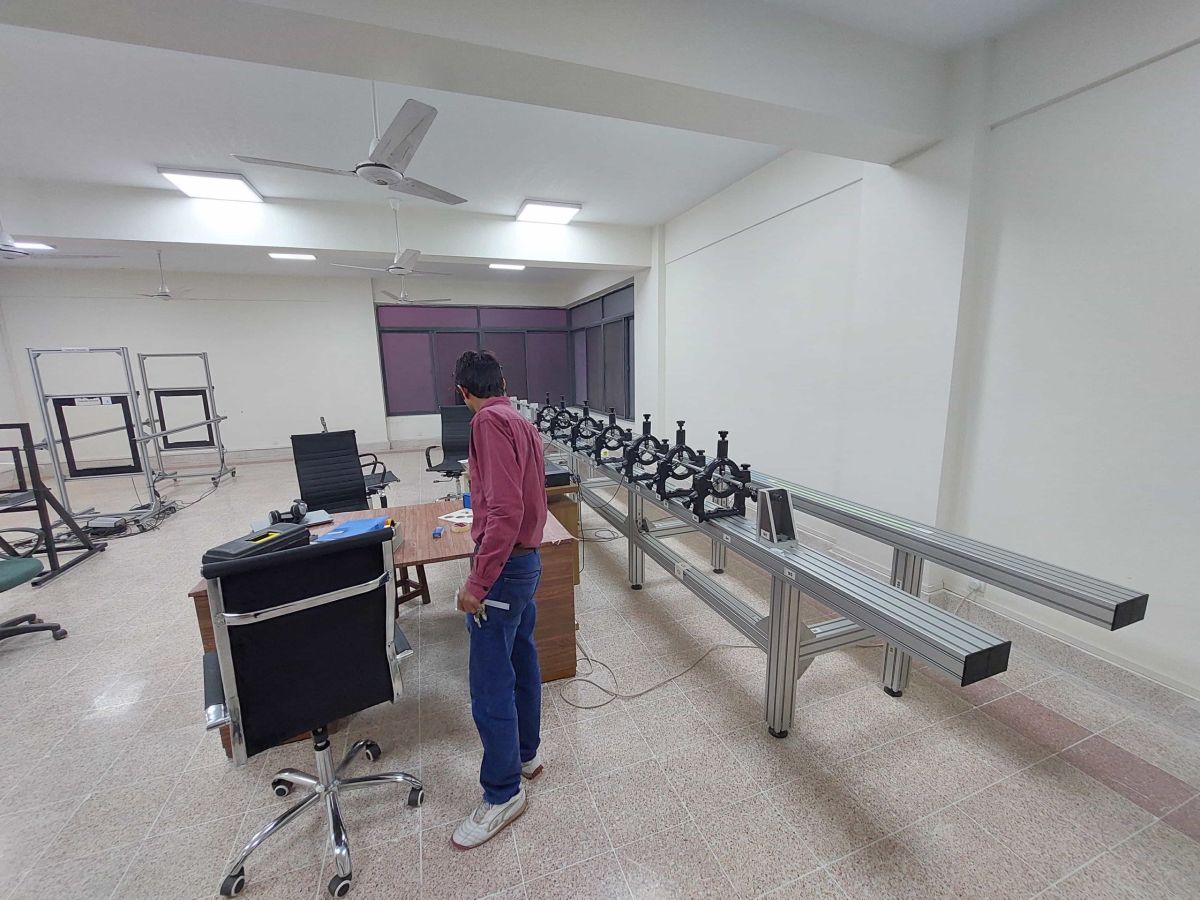

The Split Hopkinson Pressure Bar (SHPB), exclusively distributed by Marjan Polymer Industries in Pakistan, is an advanced piece of equipment designed to study the dynamic mechanical properties of materials under one-dimensional stress conditions. This device is crucial for determining the stress-strain characteristics of materials when subjected to dynamic impacts, making it an invaluable tool for both research and industrial applications.

Key Features of Split Hopkinson Pressure Bar

1. Dynamic Compression Testing

Purpose:

  • The SHPB is used for dynamic compression loading measurements, enabling the study of materials under high strain rates.

Working Principle:

  • A stress wave is generated in the incident bar, travels through the specimen, and is measured in the transmitted bar. This wave splits into transmitted and reflected waves, with strain gauges measuring the resulting deformations.

2. Bar Specifications

  • Bar Material: AL-7075
  • Incident Bar Length: 1900 mm
  • Transmission Bar Length: 850 mm
  • Bar Diameter: 18 mm
  • Throw-Off Bar Length: 1200 mm
  • Launch Barrel Length: 2600 mm
  • Striker Bar Length Range: 100, 200, 300, 400, 600 mm
  • Striker Bar Velocity: 50 m/sec

3. Pressure Tank and Strain Rate

  • Pressure Tank Volume: 25 Liters
  • Operating Pressure Range: Up to 4 MPa
  • Strain Rate Range: 100 s-1 to 10000 s-1
  • Setup Dimension: Up to 9 meters

4. Guiding and Measurement Systems

  • Guiding Rail: Combination of multiple rails forming a unified system
  • Speed Measurement: Optical sensor, measuring range 0-100 m/s
  • Test Accuracy: 1%

5. Support, Damper, and Safety Features

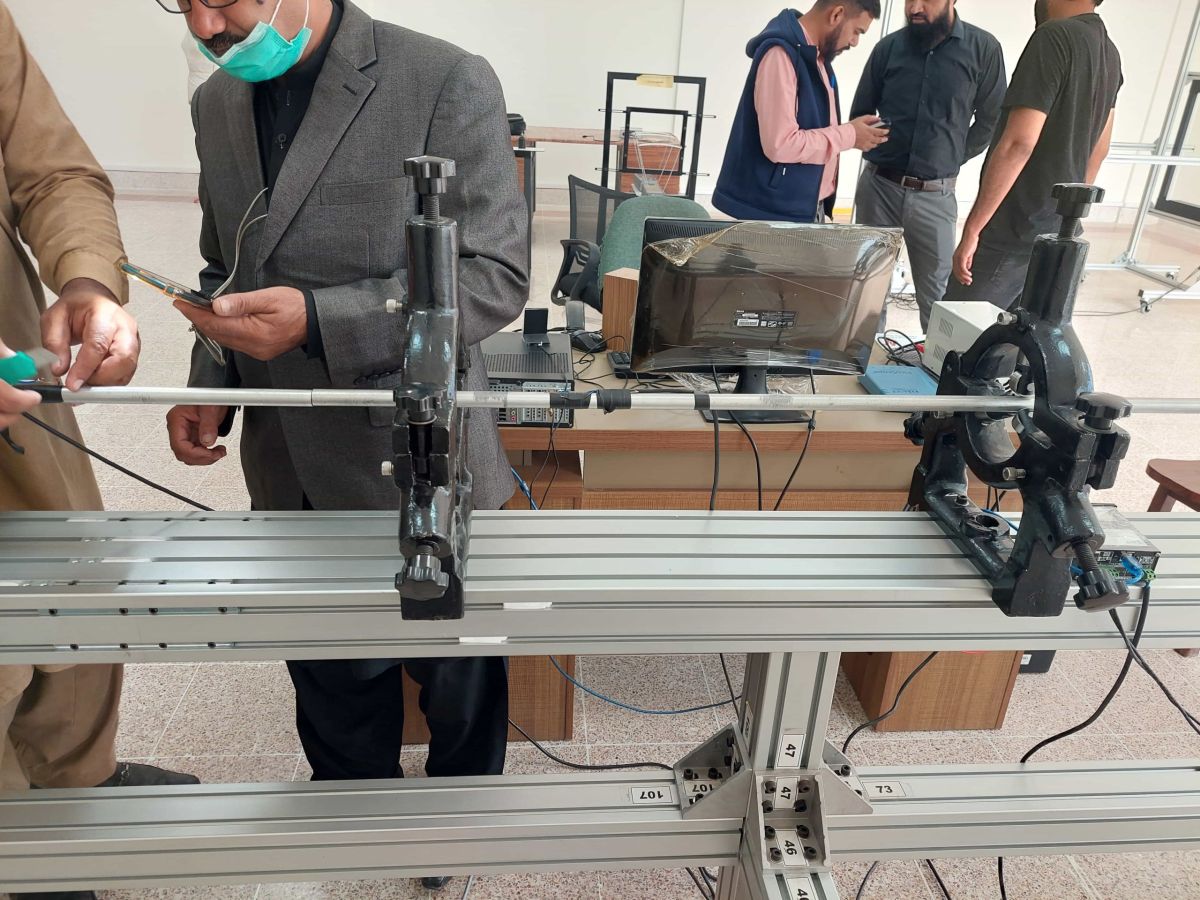

  • Bar Support and Alignment: Three-way adjustable support system
  • Damper: Energy-absorbing material with mechanical buffering
  • Safety Cover: Made of plastic board and metal frame
  • Bar Storage Shelf: Steel frame for storing bars

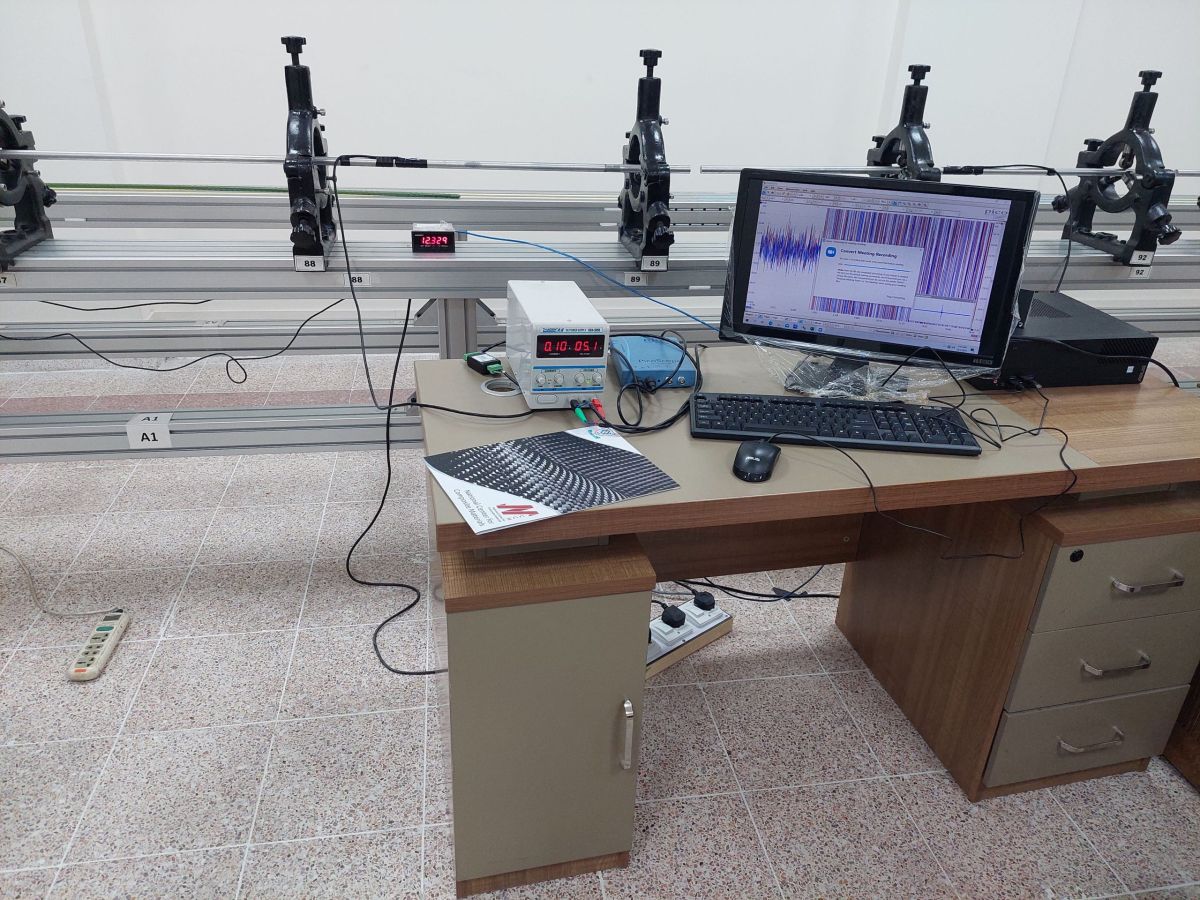

6. Data Acquisition and Software

  • DAQ System: 4-channel with a maximum response frequency of 1Mhz, includes digital oscilloscope and signal conditioners
  • Software Capabilities: Standard Hopkinson analysis module for data import/export, processing, and report output

7. Computing System

  • Specs: Intel Core i7, 500-GB Hard Disk, large screen, Data Cables, DVD ROM, Windows 10 or latest

Technical Specifications of Split Hopkinson Pressure Bar (SHPB)

Specification Details
Type of Test Dynamic Compression Loading
Bar Material AL-7075
Incident Bar Length 1900 mm
Transmission Bar Length 850 mm
Bar Diameter 18 mm
Throw-Off Bar Length 1200 mm
Launch Barrel Length 2600 mm
Striker Bar Length Range 100, 200, 300, 400, 600 mm
Striker Bar Velocity 50 m/sec
Pressure Tank Volume 25 Liters
Operating Pressure Range Up to 4 MPa
Strain Rate Range 100 s-1 to 10000 s-1
Setup Dimension Up to 9 meters
Guiding Rail Multiple unified rails with positioning and aligning blocks
Speed Measurement Optical sensor, range 0-100 m/s
Test Accuracy 1%
Bar Support and Alignment Three-way adjustable
Damper Energy-absorbing material with mechanical buffering
Safety Cover Plastic board and metal frame
Bar Storage Shelf Steel frame for storing bars
DAQ System 4-channel, max response frequency 1Mhz, includes digital oscilloscope and signal conditioners
Software Capabilities Data import/export, processing, report output, strain-stress curve creation
Computing System Intel Core i7, 500-GB Hard Disk, large screen, Data Cables, DVD ROM, Windows 10 or latest

Installation and Training

Installation:
Complete installation and commissioning by professionally trained engineers/technicians.

Training:
Comprehensive training provided to researchers and staff at the customer’s location by factory-trained personnel.

Warranty and Support

12-month limited warranty covering parts and after-sales services, excluding consumable parts and damages caused by user mishandling, electrical failures, fire, or natural disasters.
