The Terry Towel Jacquard Loom offers high-efficiency weaving with advanced jacquard technology, ensuring superior quality terry towels for various applications.

Terry Towel Jacquard Loom

High-Performance Weaving Machine

Advanced Jacquard Technology for Terry Towels

Introduction

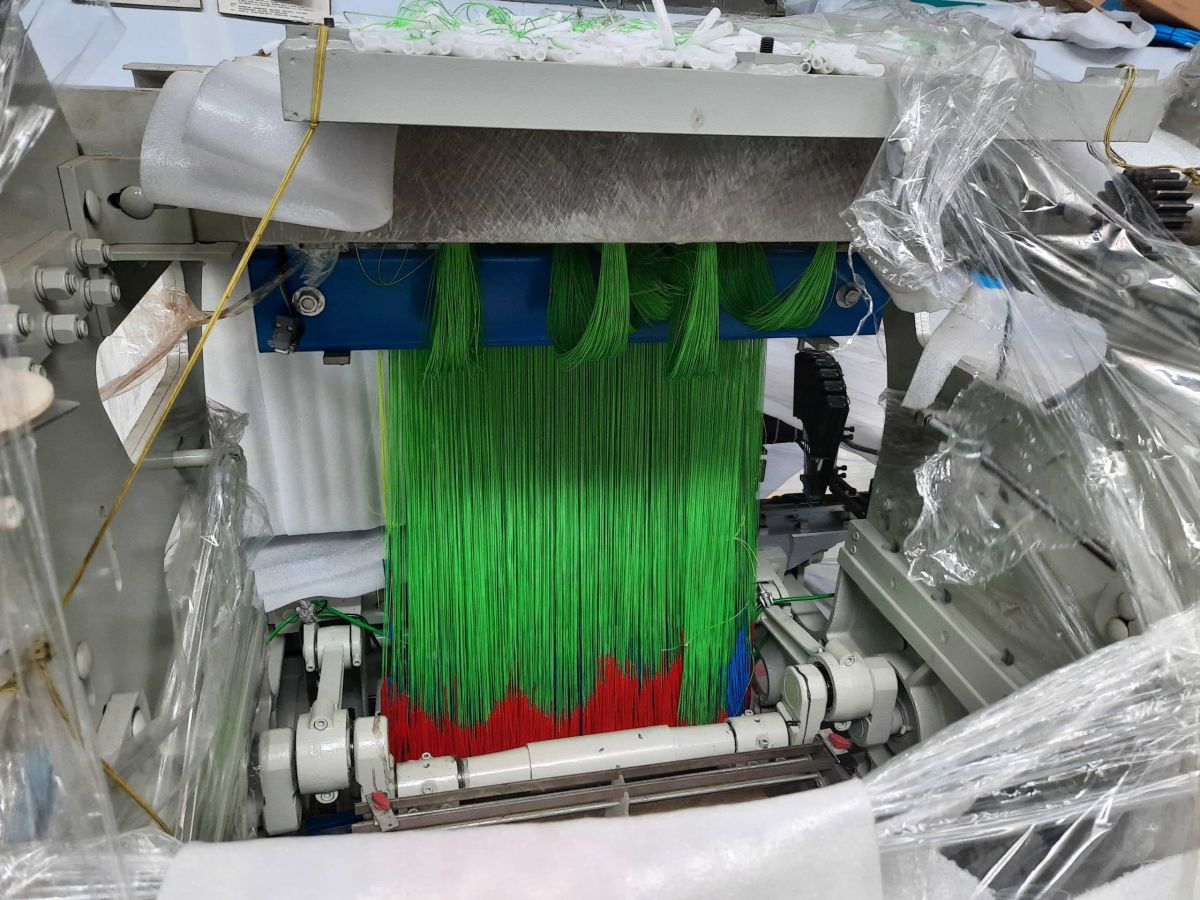

The Terry Towel Jacquard Loom is a high-performance weaving machine designed specifically for the production of terry towels. Utilizing advanced electronic jacquard technology, this loom ensures precision and efficiency in towel manufacturing. Its robust design and innovative features make it an ideal choice for textile manufacturers looking to produce high-quality terry towels with intricate patterns and superior fabric quality.

Key Features

  • Weaving Width: Capable of weaving up to 500 mm, suitable for various towel sizes.
  • Electronic Jacquard Shedding: Equipped with 1408 hooks for complex and detailed patterns.
  • High Speed: Operates at speeds ranging from 30 to 40 picks per minute (ppm), ensuring efficient production.
  • Pneumatic Weft Cutter: Ensures clean and precise cutting of weft threads.
  • Electronic Controlled Weft Colors: Supports 8 colors with pneumatic control for diverse and vibrant designs.
  • Automatic Tension Control: Maintains consistent warp tension for uniform fabric quality.
  • Independent Mechanisms: Separate controls for weft insertion, take-up, let-off, and beat-up, ensuring precision and coordination.

Types

  • Standard Model SGA598: Ideal for general terry towel production, providing reliable and efficient performance.
  • Customized Model: Tailored for specific towel designs and production requirements, offering enhanced capabilities.

Applications

  • Towel Manufacturing: Essential for producing high-quality terry towels with intricate jacquard patterns.
  • Home Textiles: Suitable for creating various home textile products, including bath towels, hand towels, and washcloths.
  • Hospitality Industry: Used in the production of luxurious and durable towels for hotels and resorts.
  • Retail Products: Ideal for manufacturing decorative and functional towels for retail markets.

Specifications

Specification Details
Weaving Width 500 mm
Suitable Yarn Cotton spun
Shedding Type Electronic Jacquard with 1408 Hooks
Speed 30 ~ 40 ppm
Weft Cutter Pneumatic system
Weft Colors 8 colors, electronic controlled, pneumatic control
Total Hooks 1408 hooks
Warp Density 1408/50 ends/cm
Harness Mode One hook / one thread
Pattern Storage 2G
Cloth Take-Up Electronic with independent stepper motor and reducer driver
Warp Let-Off Electronic with independent stepper motor for active warp introduction
Shedding Electric jacquard automatic type with servo motor control
Beat-Up Computerized controlled servo motor beating-up
Weft Insertion Rigid rapier, servo motor weft insertion
Controller PLC Based – Industrial Programmable Controller
Software WINDOWS embedded operating system with pattern editor and diagnostic options
Air Supply Pressure 0.45 ~ 0.8 Mpa, maximum gas consumption 540 L/min
Drawing-In Station Separate hand drawing-in station with 20 Heald frames

Accessories

  • Replacement Parts: Includes essential spare parts for continuous operation.
  • Weft Cutters: Ensures precise and clean weft cutting for high-quality towels.
  • Maintenance Kits: Tools and components for routine maintenance and upkeep.
  • Cleaning Equipment: Tools for maintaining the loom and ensuring optimal performance.

Installation and Training

Comprehensive installation guidelines are provided to ensure proper setup and operation. Training sessions can be arranged upon request to educate users on the correct usage, maintenance, and troubleshooting of the Terry Towel Jacquard Loom. This ensures maximum efficiency and longevity of the equipment.

Warranty Information

  • Standard Warranty: 12 months limited warranty covering parts and after-sales services, except for consumable parts and damages caused by user errors, electrical failures, fires, or natural disasters.
